How to use Wis3D

Create Wis3D API

The first step of using Wis3D in your project is to create the Wis3D API.

from wis3d import Wis3D
wis3d = Wis3D(vis_dir, sequence_name, xyz_pattern)

The vis_dir is the directory where objects will be saved. Wis3D will create files and subdirectories under this path, so it’s better to provide a dedicated vis_dir separate from your other files. Usually, one vis_dir is enough for one project.

The sequence_name is the subdirectory of vis_dir. Wis3D will create scene folders under the sequence_name. You can use scene to save time-varying data. The default scene id is 00000. Different types of data will be saved in the current scene folder.

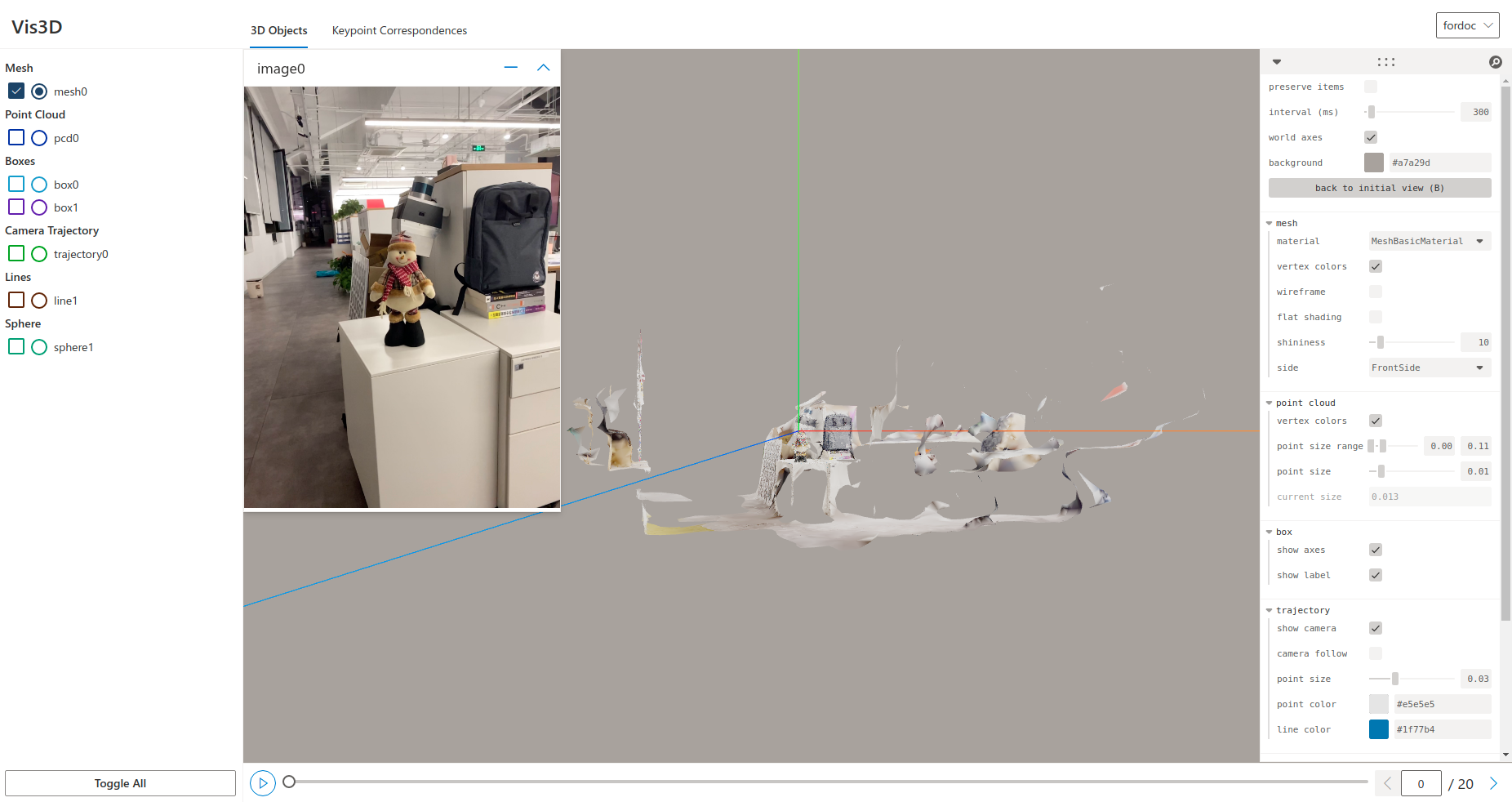

You can switch different scenes at the bottom of the Web page. In addition, you can switch different sequences in the current vis_dir in the upper right corner of the page.

xyz_pattern applies the mapping of the Three.js coordinate to the target coordinate. Default is xyz_pattern=('x', 'y', 'z')

Save data

Wis3D API supports meshes, point clouds, camera trajectories, voxel grids, boxes, spheres, lines, images, and keypoint correspondences. Use Wis3D.add_{types} to save objects and Wis3D.set_scene_id(scene_id) to switch scenes. For more, please visit Python API.

Start Web page

After adding data to the Wis3D, start the Web server.

wis3d --vis_dir $vis_dir --host $host --port $port --verbose $verbose

vis_dir is the same as vis_dir above.

host is the hostname to run the service, default is 0.0.0.0.

port is the port to run the service, default is 19090. If the port number is unspecified or is used, increase one by one from 19090 to find a free port.

verbose decides whether to let CherryPy log detailed information, default is False.

Command line tool

We provide a command line tool to help you quickly add object files to Wis3D and start the Web server without the need of writing Python code.

w3dcli FILES --host HOST

FILES is the files to be added to Wis3D. Currently, the files can only be files in the format of jpg, png, ply, and obj.

HOST is the hostname to run the service, default is localhost.

This command line will automatically create a temporary directory to save the files and start the Web server. The temporary directory will be deleted after the Web server is closed.

Shortcuts

Shortcut	Description
b	Back to initial view
z	Change zoom speed
ArrowUp/ ArrowDown/ ArrowRight/ ArrowLeft	Control camera panning
a	Switch to previous scene
d	Switch to next scene
q	Switch to the first scene
e	Switch to the last scene
r	Refresh the page
w/s	Change sequence
Double Click	Reset object to center and zoom in
